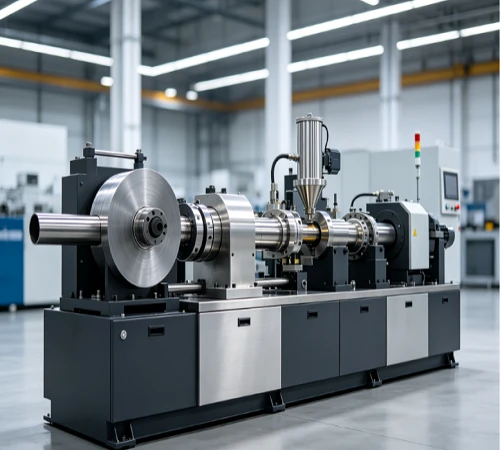

Lub Tshuab Me Me Stainless Hlau Tube Mill yog qhov siab - qhov tseeb welded tube ntau lawm txheej txheem tsim tshwj xeeb rau kev tsim me me - txoj kab uas hla stainless hlau tubing nrog qhov tshwj xeeb qhov tseeb, qhov zoo tshaj qhov tiav, thiab ntev - lub sij hawm ntau lawm.
Kev sib koom ua ke ntawm kev noj zaub mov zoo tshaj plaws, kev ua tiav yob txoj kev, siab - zaus vuam, kev kho seam, sizing, straightening, txiav, thiab automated sau technologies, cov kab tiav no ua haujlwm rau kev thov thoob plaws cov khoom siv tsheb, khoom siv kho mob, kho kom zoo nkauj architectural, heat exchangers, fluid transport systems, thiab precision industrial engineering. Ua nrog lub pob zeb ruaj khov thiab txhim kho kev ua haujlwm zoo, lub zeb no ua kom ruaj khov, siab -kev ua haujlwm nrawm nrog cov khoom siv tsawg tsawg thiab cov khoom tsim tau zoo ib yam.
Technical Specifications
|
Parameter |
Specification Paub meej |
|
Tube Hom |
Welded Stainless Hlau Tube |
|
Tube Diameter Range |
Φ6mm - Φ50mm (Tshaj Customizable) |
|
Phab ntsa Thickness |
0.3mm - 3.0mm (Tshaj Customizable) |
|
Cov khoom siv sib xws |
Stainless hlau (AISI 304, 316, 201, thiab tshwj xeeb Alloys) |
|
Vuam Technology |
Siab -Vuam zaus / TIG Vuam xaiv |
|
Kab Ceev |
Txog li 120 m / min (Spec-nyob ntawm) |
|
Tsim Architecture |
Multi-Pass Precision Roll Forming |
|
Txiav -Off Mechanism |
Flying Saw / Computer-Controlled Cold Saw Cutting |
|
Tswj Architecture |
PLC Automation nrog Touchscreen Interface (Kev Lag Luam 4.0 Npaj) |
Core Technical Advantages
Precision Roll Forming Mechanics:Ntau- dhau qhov kev hloov pauv zuj zus kom ntseeg tau tias qhov seem ntawm cov khoom muaj kev ntxhov siab tsawg, zoo tshaj qhov sib npaug, thiab kev tswj kom nruj.
High-Kev sib txuas ntawm vuam zaus:Muab kev hloov pauv hluav taws xob txhim khu kev qha, kev tswj xyuas cov cua sov kom zoo, thiab qhov tsis zoo ntawm cov vuam seam kev ncaj ncees rau siab - siab lossis kev zoo nkauj.
Rigid Mill Stand Tsim:Hnyav-lub luag haujlwm, kev vibration-damped structural moj khaum maximizes siab-ceev stability thiab prolongs dov yob lifespan.
Advanced Sizing & Straightening:Zoo -tunes sab nraud diameters thiab straightness kam rau ua raws li nruj kev lag luam thiab cov qauv kev kho mob.
Zog-Txoj kev tsav tsheb zoo:Optimized kis tau tus mob txo lub hwj chim noj thiab txhua yam hnav thaum lub sij hawm tas mus li multi- hloov ntau lawm.
Cov txheej txheem ntau lawm
Coil Loading:Kev ruaj ntseg mounting ntawm raw stainless hlau sawb coils.
Hydraulic Uncoiling:Tswj cov khoom unwinding rau hauv cov kab ntau lawm.
Strip Leveling & Ntug Trimming:Flattening strip nto thiab tu npoo rau vuam npaj.
Strip Accumulation (Looping):Buffer cia kom ntseeg tau tias tsis muaj kev cuam tshuam kev txuas txuas txuas ntxiv.
Precision Roll Forming:Progressive shaping ntawm lub tiaj tus sawb mus rau hauv ib tug huv tubular geometry.
High -Vuam zaus:Induction los yog hu rau cua sov fusing lub raj ntug ua ke.
Weld Seam Scarfing & Kev Kho Mob:Tshem tawm sab nraud / sab hauv flash thiab hlaws txias.
Ntug txias:Ceev ceev kub stabilization ntawm dej txias.
Sizing & Straightening:Calibrating qhov tseeb sab nrauv thiab rectifying straightness.
Kev tshuaj xyuas online:Kev soj ntsuam tas li ntawm cov qauv kev ncaj ncees thiab qhov ntev.
Automatic Flying Cut-Tawm:Precise length synchronization thiab burr -dawb txiav.
Ua tiav Tube Collection:Automated bundling thiab tso tawm.
Cov Cheebtsam
Coil Handling System:Engineered rau du, nro-tswj sawb noj kom tshem tawm cov fwj ntau lawm.
Txoj Kev Mill Section:Precision-machined, siab-rigidity yob sawv ntsug kom ntseeg tau qhov hloov pauv geometric.
Vuam & Scarfing Unit:Cov khoom ruaj khov- xeev siab- lub tshuab hluav taws xob zaus ua ke nrog micro- cov cuab yeej kho cov phuam qhwv caj dab.
Sizing & Turkshead Straightening Unit:Multi-axis kho qhov system lav qhov nruj ncig thiab ncaj siab kam rau ua.
Synchronized txiav System:High-precision encoder-tsav txiav-tawm apparatus kom ntev npaum li cas repeatability.
Daim ntawv thov kev lag luam
- Automotive tso manifolds, roj kab, thiab cov khoom siv chassis
- Cov cuab yeej kho mob phais thiab tsev kho mob rooj tog infrastructure
- Architectural handrails, ornamental trims, thiab sab hauv tsim qauv
- Industrial heat exchangers thiab condenser piping systems
- Khoom noj khoom haus- qib thiab tshuaj ua cov kav dej
- Cov dej hauv nroog, cov pa roj, thiab cov kua dej thauj mus los
- Precision mechanical tes tsho thiab kev cai muaj machinery qhov chaw
Quality Control & Assurance
Raw Material Verification:Kev txheeb xyuas zoo ntawm cov khoom siv hlau thiab cov khoom sib dhos ua ke.
Dimensional Metrology:Coordinate ntsuas thiab laser pov thawj rau yob sawv thiab machined Cheebtsam.
Kev Ntsuas Hluav Taws Xob:Kev ntsuas nruj nruj ntawm PLC panels, inverters, thiab siab - zaus generators.
Dry & Load Trial Runs:Factory txais simulations replicating tiag tiag cov neeg siv kev khiav hauj lwm ceev thiab loads.
Ua ntej-Kev Tshuaj Xyuas Kev Xa Khoom:Kev txheeb xyuas zaum kawg ntawm xeb- pov thawj, tiv thaiv crating, thiab ua tiav cov khoom siv ntxiv.
Customization Muaj peev xwm
Tiav tube dimension matrices txuam niche phab ntsa -thickness- rau - txoj kab uas hla.
Modular kev koom ua ke ntawm cov kab tshwj xeeb annealing lossis eddy tam sim no ntsuas ntsuas.
Customized voltage yuav tsum, enclosure ratings, thiab localized kev ruaj ntseg interlocks.
Tailored cog layout configurations tsim kom haum rau tej rhiav pem teb qhov ntev.
